Capacity: 350ml/12oz

Size/weight: 8.4×7.1×9.3cm/200g

Carton: 56×48×23 cm/0.062m³

QTY: 48pcs

N.W./G.W.: 9.6/11.1kgs

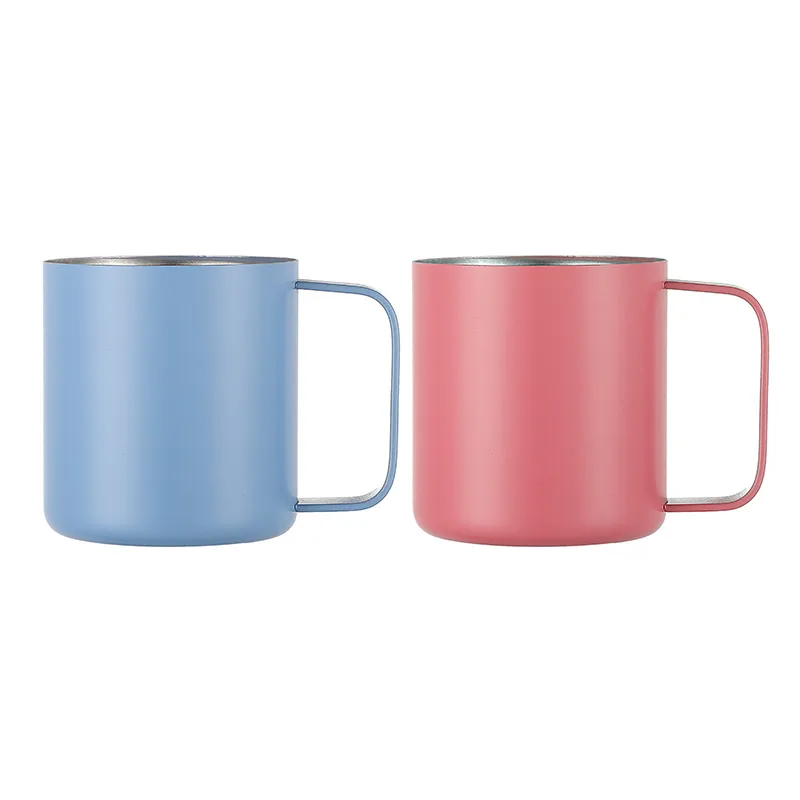

1. Core Concept: What Defines a Hand Insulated Stainless Steel Office Cup

A hand insulated stainless steel office cup is a reusable drinking vessel engineered to balance thermal performance, ergonomic handling, and daily usability in professional environments. Unlike generic drink containers, this category emphasizes controlled heat transfer, stable grip mechanics, and spill mitigation during routine office and commuting activities.

The defining technical feature is double-wall insulation, usually vacuum-based, which reduces heat exchange between the beverage and the surrounding environment. The inclusion of a matching handle is not cosmetic; it reflects an ergonomic response to prolonged holding, frequent lifting, and interaction with hot liquids in desk-based settings.

From a systems perspective, the cup functions as a small-scale thermal container where insulation efficiency, material choice, and user interaction are interdependent rather than isolated design decisions.

2. Key Technologies and Thermal Principles

2.1 Double-Wall Insulation Fundamentals

Double-wall insulated Tumblers consist of two concentric stainless steel shells separated by a vacuum or low-pressure air layer. This structure limits:

Conduction, by eliminating direct material contact between inner and outer walls

Convection, by removing air movement within the cavity

Radiation, through reflective inner surfaces that reduce thermal emission

For hot beverages, this configuration slows heat loss, maintaining drinkable temperatures over several hours. For cold beverages, it minimizes heat gain while preventing condensation on the exterior surface, a critical factor in office environments with electronics and paper documents.

2.2 Role of the Handle in Thermal and Mechanical Performance

The handle introduces a controlled interruption between the user’s hand and the insulated body. Its technical functions include:

Thermal decoupling, reducing perceived heat during contact

Load redistribution, lowering wrist fatigue during repeated lifting

Stability enhancement, particularly when the cup is partially filled

Well-engineered handles are designed to avoid penetrating the vacuum chamber, ensuring insulation integrity is not compromised.

2.3 Leak-Resistant Sealing Systems

Leak resistance is typically achieved through a combination of:

Precision-molded lid interfaces

Food-grade silicone gaskets with defined compression ratios

Controlled venting or pressure-balancing features

Rather than relying on excessive tightening force, modern designs prioritize tolerance accuracy and material elasticity to maintain consistent sealing performance over repeated open-close cycles.

3. Product Structure, Materials, and Manufacturing Processes

3.1 Stainless Steel Selection and Treatment

Most insulated stainless steel office cups use 18/8 (AISI 304) stainless steel, selected for its corrosion resistance, neutral taste profile, and compliance with EU and North American food-contact regulations.

The inner surface is often polished or electropolished to reduce micro-roughness. This treatment improves hygiene by limiting residue adhesion and simplifying cleaning without chemical dependence.

3.2 Lid, Seal, and Auxiliary Components

Lids are commonly produced from BPA-free polypropylene or copolyester materials, chosen for dimensional stability and impact resistance.

Seals utilize silicone compounds engineered for elasticity retention across repeated thermal cycles.

Material compatibility between lid and gasket is essential to avoid premature wear, deformation, or odor retention.

3.3 Manufacturing Workflow

A typical production sequence includes:

Deep drawing or hydroforming of inner and outer steel shells

Precision alignment and laser welding to create the vacuum chamber

Vacuum evacuation and sealing

Thermal retention testing under controlled conditions

Leak and pressure validation of the lid assembly

Consistency in these steps directly affects long-term insulation reliability.

4. Factors Influencing Quality and Performance

Several variables determine whether an insulated tumbler delivers predictable performance:

Vacuum integrity: Even minor seal degradation can significantly reduce insulation duration

Wall thickness optimization: Excess material increases weight without proportional thermal benefit

Lid thermal bridging: Poorly designed lids often become the primary heat-loss pathway

Handle attachment method: Mechanical fastening must avoid stress concentration and fatigue

Evaluating these factors helps distinguish structurally sound products from visually similar but functionally weaker alternatives.

5. Common Industry Challenges and Pain Points

Despite widespread adoption, the category faces recurring issues:

Gradual loss of leak resistance due to gasket compression fatigue

External surface warming caused by incomplete vacuum formation

Handle loosening after prolonged mechanical stress

Complex lid geometries that complicate cleaning

Addressing these problems requires integrated design solutions rather than isolated component upgrades.

6. Application Scenarios and Use Cases

6.1 Office and Desk-Based Work

In office environments, insulated cups allow users to maintain beverage temperature throughout extended work sessions. The handle improves control when handling hot liquids near electronic devices, reducing spill risk.

6.2 Daily Commutes

For commuting professionals, leak-resistant seals and ergonomic grips support use during walking, driving, or public transport. Temperature retention ensures usability despite delays or extended travel times.

6.3 Corporate and Institutional Deployment

Organizations increasingly adopt standardized drinkware for sustainability and employee wellness initiatives. In such contexts, durability, cleaning efficiency, and batch-to-batch consistency are prioritized over decorative variation.

7. Supply Chain and Supplier Evaluation Criteria

From a B2B procurement perspective, supplier selection extends beyond unit pricing. Key evaluation criteria include:

Verified material certifications (FDA, LFGB, REACH where applicable)

Transparency in vacuum sealing and testing processes

Statistical quality control across production batches

Capability to maintain consistent handle geometry and attachment strength

Long-term availability of replacement seals and lids

A robust supply chain reduces post-distribution performance variance and lifecycle costs.

8. Market Trends and Future Development Directions

Current and emerging trends include:

Ergonomic refinement, informed by occupational health research

Simplified lid architectures, balancing hygiene and functionality

Improved seal materials, extending service life under frequent use

Softer, cohesive aesthetics, aligning with contemporary office interiors

Future development is expected to focus on incremental improvements in usability and reliability rather than radical changes in core structure.

9. Frequently Asked Questions (FAQ)

Q1: How long can double-wall insulation maintain beverage temperature?

Performance varies by design, but hot drinks commonly remain above 60 °C for 4–6 hours, while cold drinks can stay below 10 °C for 10–12 hours.

Q2: Does adding a handle reduce insulation efficiency?

No. Properly designed handles are thermally isolated and do not interfere with the vacuum chamber.

Q3: Are leak-resistant seals fully spill-proof?

They significantly reduce accidental leakage during normal movement but are not intended to withstand extreme pressure or prolonged inversion.

Q4: What maintenance practices improve longevity?

Regular gasket inspection, gentle cleaning methods, and thorough drying before storage help preserve sealing and insulation performance.

10. Conclusion

The hot selling hand insulated stainless steel office cup represents a convergence of thermal engineering, material science, and ergonomic design. Its relevance in professional environments stems from consistent, measurable performance rather than novelty. For B2B stakeholders, understanding the structural logic, manufacturing controls, and supply chain variables behind these products is essential for informed sourcing and long-term deployment decisions.
